Model Engine Company of America

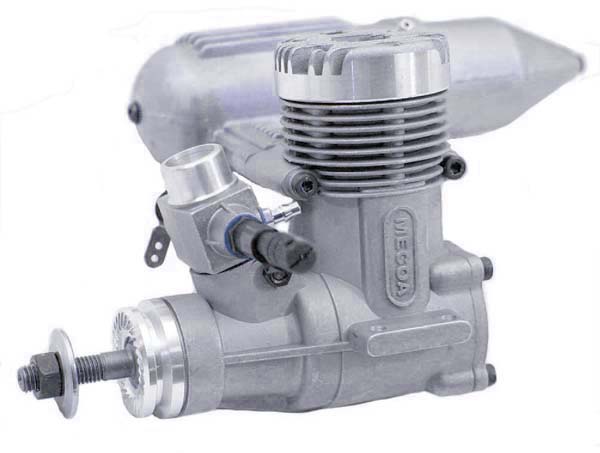

MECOA .46 AERO

THE MECOA .46 is a great value when it comes to power and precision.

Features:
Real Hard Chrome ABC Cylinder • Double ball bearings
Hardened steel one piece crankshaft
Bushed Connecting Rod • One piece crankcase
Schnuerle porting • Twin Needle, metal carburetor
Factory direct parts & service • Made by America's leading producer
One Year Warranty

SPECIFICATIONS
Bore & Stroke
22.0 mm x 19.6 mm --- 0.646" x 0.531"
Displacement
7.5 ccm --- .46 cu. in.
Weight
342 gr
Crankshaft thread
1/4 x 28
Crankshaft bearing
double ball bearing
Connecting rod type
Aluminum Alloy bronze bushing both ends
Piston/cylinder type
aluminum piston, brass cylinder with hard chrome plating
Carburetor
two needle with full idle metering
Porting type
Schnuerle ports with boost port
Crankcase
one piece high pressure die cast
Glow Plug
K&B 1L Standard Long
Max Horsepower
1.43 with tuned pipe & 20% nitro
Practical RPM range
2,000 ~ 17,000
Max RPM
17,000
Prop size
10x7 - 11x6
Recommended fuel
5~15% nitro (minimum 18% oil by volume)
Running temp
230-250f
Warranty
2 year limited warranty against defects.
See warranty for details.
Muffler/pipe
standard muffler
Owner's Guide
